State of the Art Design

State of the Art Design

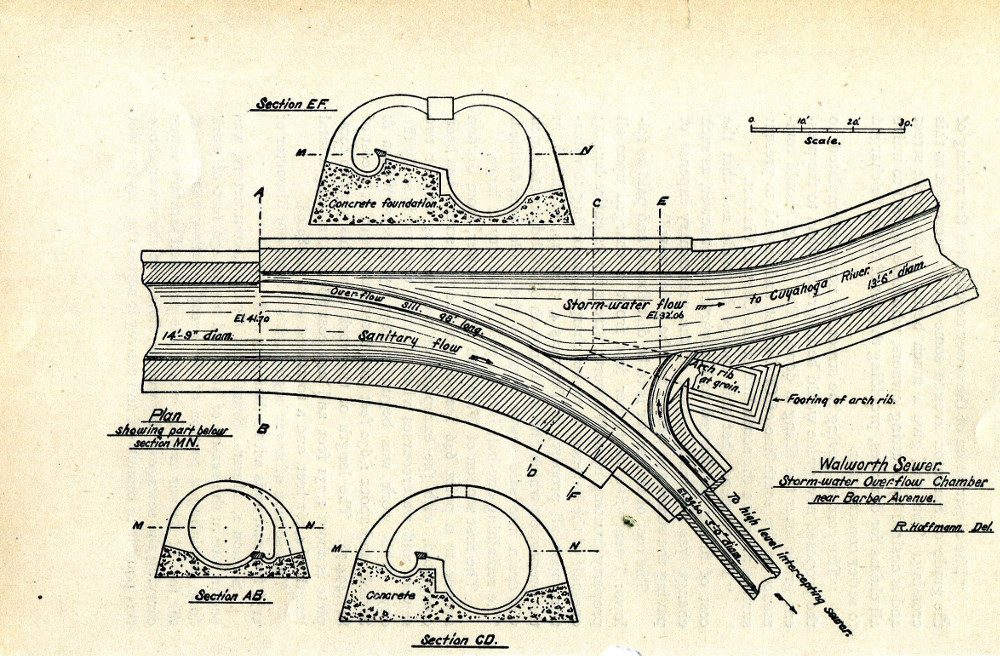

This sketch taken from the Engineer's report in the 1898 Annual Cleveland Report reveals that the design of the Walworth Run Sewer was a combination sewer for the transportation of both waste water and storm water. As it neared the Cuyahoga River near Barber Avenue, the sewer was designed to separate into two chambers--one to carry waste water to an interceptor that emptied into Lake Erie, and the other to carry storm water to an outlet in the Cuyahoga River.

Image courtesy of City of Cleveland Archives
